Name: EN 10294-1 Hollow Bars For Machining
SKU: 7792
Availability: InStock

Product Details

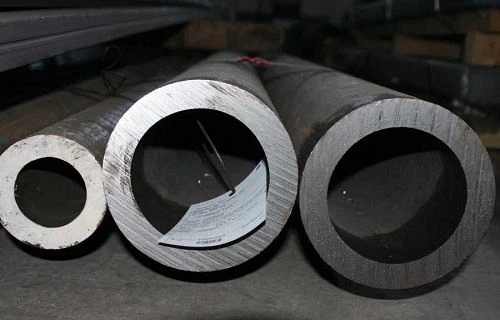

EN 10294-1 Hollow Bars for MachiningThis part of EN 10294 specifies the technical delivery conditions for seamless steel hollow bars intended for the manufacture of engineering components by machining.OD: 30-250mm

ID: 20-200mm

WT: 10-65mm

Main grades: E355, E470, 20MnV6

Length: 3000-12000mm

1. Pipes are supplied with lengths according to standard requirements.
2. Any lengths different from the standard ones are subject to additional negotiations.

EN 10294-1 E355, E470, 20MnV6 Hollow Bar Chemical Composition:

Steel grade		C		Si		Mn		P	S		Cr	Mo	Ni
Name	Number	min	max	min	max	min	max	max	min	max	max	max	max
E355 d	1.0580	–	0,22	–	0,55	–	1,60	0,030	0,015	0,050	–	–	–
E355J2	1.0592	–	0,22	–	0,55	–	1,60	0,030	0,015	0,050	0,30	0,08	0,30
E420J2	1.0599	0,16	0,22	0,10	0,50	1,30	1,70	0,030	0,015	0,050	0,30	0,08	0,40
E470	1.0536	0,16	0,22	0,10	0,50	1,30	1,70	0,030	0,015	0,050	–	–	–
E590K2	1.0644	0,16	0,22	0,10	0,50	1,30	1,70	0,030	0,015	0,050	0,30	0,08	0,40
a. Elements not included in this table shall not be intentionally added to the steel without the agreement of the purchaser, except for elements which may be added for finishing the cast. All appropriate measures shall be taken to prevent the addition of undesirable elements from scrap or other materials used in the steelmaking process.
b . The content of these elements need not to be reported unless intentionally added to the cast.
c. V may be replaced by Nb or Ti percent for percent provided that the V content shall be at least 0,05 % and the sum V + Nb + Ti is ≤ 0,21 %. d Additions of Nb, V or Ti are permitted and left at the discretion of the manufacturer. The content of these elements shall be reported

EN 10294-1 E355, E470, 20MnV6 Hollow Bar Mechanical Property:

Steel grade		Upper yield strength ReH min MPa For T_N in mm^a				Tensile strength Rm min MPa For T_N in mm				Elongation in the longitudinal direction A min %	Minimum average absorbed energy KV, in. J at a test temperature of – 20 °C
Name	Number	T_N≤16	16＜T_N≤25	25＜T_N≤40	40＜T_N≤50	T_N≤16	16＜T_N≤25	25＜T_N≤25	40＜T_N≤50	Elongation in the longitudinal direction A min %
E355	1.0580	355	345	335	335	490	490	470	470	18	–
E355J2	1.0592	355	345	335	335	490	490	470	470	20	27
E420J2	1.0599	420	400	380	380	600	560	530	530	19	27
E470	1.0536	470	460	430	430	650	620	600	550	17	–
E590K2	1.0644	590	540	480	480	700	650	570	570	16	40
^aAt the discretion of the manufacturer the elongation may also be determined in the transverse direction. In this case, the minimum values to be achieved shall be those for the longitudinal direction minus 2 points.

Available Size Chart:

Hollow Bar Size Code	De	Di	W.T	Weight	Size Chart of EN 10294-1 Hollow Bars for Machining	Hollow Bar Size Code	De	Di	W.T	Weight
Hollow Bar Size Code	mm	mm	mm	Kg/m		Hollow Bar Size Code	mm	mm	mm	Kg/m
3020	30	20	5.0	3.08		140110	140	110	15.0	46.24
3015	30	15	7.5	4.16		140105	140	105	17.5	52.86
3010	30	10	10.0	4.93		140100	140	100	20.0	59.18
3525	35	25	5.0	3.70		14095	140	95	22.5	65.19
3520	35	20	7.5	5.09		14090	140	90	25.0	70.90
3515	35	15	10.0	6.17		14085	140	85	27.5	76.29
3510	35	10	12.5	6.94		14080	140	80	30.0	81.38
4030	40	30	5.0	4.32		14075	140	75	32.5	86.16
4025	40	25	7.5	6.01		150130	150	130	10.0	34.52
4020	40	20	10.0	7.40		150125	150	125	12.5	42.38
4015	40	15	12.5	8.48		150120	150	120	15.0	49.94
4535	45	35	5.0	4.93		150115	150	115	17.5	57.18
4530	45	30	7.5	6.94		150110	150	110	20.0	64.12
4525	45	25	10.0	8.63		150105	150	105	22.5	70.74
4520	45	20	12.5	10.02		150100	150	100	25.0	77.06
4515	45	15	15.0	11.10		15095	150	95	27.5	83.07
5040	50	40	5.0	5.55		15090	150	90	30.0	88.78
5035	50	35	7.5	7.86		15085	150	85	32.5	94.17
5030	50	30	10.0	9.86		160135	160	135	12.5	45.47
5025	50	25	12.5	11.56		160130	160	130	15.0	53.64
5545	55	45	5.0	6.17		160125	160	125	17.5	61.50
5540	55	40	7.5	8.79		160120	160	120	20.0	69.05
5535	55	35	10.0	11.10		160115	160	115	22.5	76.29
5530	55	30	12.5	13.10		160110	160	110	25.0	83.23
5525	55	25	15.0	14.80		160105	160	105	27.5	89.85
6050	60	50	5.0	6.78		160100	160	100	30.0	96.17
6045	60	45	7.5	9.71		16095	160	95	32.5	102.18
6040	60	40	10.0	12.33		16090	160	90	35.0	107.89
6035	60	35	12.5	14.64		16085	160	85	37.5	113.28
6030	60	30	15.0	16.65		170145	170	145	12.5	48.55
6555	65	55	5.0	7.40		170140	170	140	15.0	57.33
6550	65	50	7.5	10.63		170135	170	135	17.5	65.81
6545	65	45	10.0	13.56		170130	170	130	20.0	73.98
6540	65	40	12.5	16.18		170125	170	125	22.5	81.84
6535	65	35	15.0	18.50		170120	170	120	25.0	89.39
6530	65	30	17.5	20.50		170115	170	115	27.5	96.64
7060	70	60	5.0	8.01		170110	170	110	30.0	103.57
7055	70	55	7.5	11.56		170105	170	105	32.5	110.20
7050	70	50	10.0	14.80		170100	170	100	35.0	116.52
7045	70	45	12.5	17.72		17095	170	95	37.5	122.53
7040	70	40	15.0	20.34		17090	170	90	40.0	128.23
7035	70	35	17.5	22.66		17085	170	85	42.5	133.63
7030	70	30	20.0	24.66		17080	170	80	45.0	138.71
7565	75	65	5.0	8.63		180155	180	155	12.5	51.63
7560	75	60	7.5	12.48		180150	180	150	15.0	61.03
7555	75	55	10.0	16.03		180145	180	145	17.5	70.13
7550	75	50	12.5	19.27		180140	180	140	20.0	78.91
7545	75	45	15.0	22.19		180135	180	135	22.5	87.39
7540	75	40	17.5	24.81		180130	180	130	25.0	95.56
7535	75	35	20.0	27.13		180125	180	125	27.5	103.42
8070	80	70	5.0	9.25		180120	180	120	30.0	110.97
8065	80	65	7.5	13.41		180115	180	115	32.5	118.21
8060	80	60	10.0	17.26		180110	180	110	35.0	125.15
8055	80	55	12.5	20.81		180105	180	105	37.5	131.78
8050	80	50	15.0	24.04		180100	180	100	40.0	138.10
8045	80	45	17.5	26.97		18095	180	95	42.5	144.11
8040	80	40	20.0	29.59		18090	180	90	45.0	149.81
8570	85	70	7.5	14.33		18085	180	85	47.5	155.20
8565	85	65	10.0	18.50		190170	190	170	10.0	44.39
8560	85	60	12.5	22.35		190165	190	165	12.5	54.71
8555	85	55	15.0	25.89		190160	190	160	15.0	64.73
8550	85	50	17.5	29.13		190155	190	155	17.5	74.44
8545	85	45	20.0	32.06	190150	190	150	20.0	83.84
9075	90	75	7.5	15.26	190145	190	145	22.5	92.94
9070	90	70	10.0	19.73	190140	190	140	25.0	101.72
9065	90	65	12.5	23.89	190135	190	135	27.5	110.20
9060	90	60	15.0	27.74	190130	190	130	30.0	118.37
9055	90	55	17.5	31.29	190125	190	125	32.5	126.23
9050	90	50	20.0	34.52	190120	190	120	35.0	133.78
9045	90	45	22.5	37.45	190115	190	115	37.5	141.02
9580	95	80	7.5	16.18	190110	190	110	40.0	147.96
9575	95	75	10.0	20.96	190105	190	105	42.5	154.59
9570	95	70	12.5	25.43	190100	190	100	45.0	160.91
9565	95	65	15.0	29.59	200175	200	175	12.5	57.80
9560	95	60	17.5	33.45	200170	200	170	15.0	68.43
9555	95	55	20.0	36.99	200165	200	165	17.5	78.76
9550	95	50	22.5	40.23	200160	200	160	20.0	88.78
9545	95	45	25.0	43.16	200155	200	155	22.5	98.49
10085	100	85	7.5	17.11	200150	200	150	25.0	107.89
10080	100	80	10.0	22.19	200145	200	145	27.5	116.98
10075	100	75	12.5	26.97	200140	200	140	30.0	125.77
10070	100	70	15.0	31.44	200135	200	135	32.5	134.24
10065	100	65	17.5	35.60	200130	200	130	35.0	142.41
10060	100	60	20.0	39.46	200125	200	125	37.5	150.27
10055	100	55	22.5	43.00	200120	200	120	40.0	157.82
10050	100	50	25.0	46.24	200115	200	115	42.5	165.07
10045	100	45	27.5	49.17	200110	200	110	45.0	172.00
10590	105	90	7.5	18.03	200105	200	105	47.5	178.63
10585	105	85	10.0	23.43	200100	200	100	50.0	184.95
10580	105	80	12.5	28.51	210185	210	185	12.5	60.88
10575	105	75	15.0	33.29	210180	210	180	15.0	72.13
10570	105	70	17.5	37.76	210175	210	175	17.5	83.07
10565	105	65	20.0	41.92	210170	210	170	20.0	93.71
10560	105	60	22.5	45.78	210165	210	165	22.5	104.03
10555	105	55	25.0	49.32	210160	210	160	25.0	114.05
10550	105	50	27.5	52.56	210155	210	155	27.5	123.76
11095	110	95	7.5	18.96	210150	210	150	30.0	133.16
11090	110	90	10.0	24.66	210145	210	145	32.5	142.26
11085	110	85	12.5	30.05	210140	210	140	35.0	151.04
11080	110	80	15.0	35.14	210135	210	135	37.5	159.52
11075	110	75	17.5	39.92	210130	210	130	40.0	167.69
11070	110	70	20.0	44.39	210125	210	125	42.5	175.55
11065	110	65	22.5	48.55	210120	210	120	45.0	183.10
11060	110	60	25.0	52.40	220180	220	180	20.0	98.64
115100	115	100	7.5	19.88	220170	220	170	25.0	120.22
11595	115	95	10.0	25.89	220160	220	160	30.0	140.56
11590	115	90	12.5	31.60	220155	220	155	32.5	150.27
11585	115	85	15.0	36.99	220150	220	150	35.0	159.67
11580	115	80	17.5	42.08	220145	220	145	37.5	168.77
11575	115	75	20.0	46.85	220140	220	140	40.0	177.55
11570	115	70	22.5	51.32	220135	220	135	42.5	186.03
11565	115	65	25.0	55.49	220130	220	130	45.0	194.20
120100	120	100	10.0	27.13	220125	220	125	47.5	202.06
12095	120	95	12.5	33.14	220120	220	120	50.0	209.61
12090	120	90	15.0	38.84	230190	230	190	20.0	103.57
12085	120	85	17.5	44.23	230180	230	180	25.0	126.38
12080	120	80	20.0	49.32	230170	230	170	30.0	147.96
12075	120	75	22.5	54.10	230160	230	160	35.0	168.30
12070	120	70	25.0	58.57	230155	230	155	37.5	178.01
125105	125	105	10.0	28.36	230150	230	150	40.0	187.42
125100	125	100	12.5	34.68	230145	230	145	42.5	196.51
12595	125	95	15.0	40.69	230140	230	140	45.0	205.29
12590	125	90	17.5	46.39	230135	230	135	47.5	213.77
12585	125	85	20.0	51.79	230130	230	130	50.0	221.94
12580	125	80	22.5	56.87	230125	230	125	52.5	229.80
12575	125	75	25.0	61.65	250200	250	200	25.0	138.71
12570	125	70	27.5	66.12	250190	250	190	30.0	162.76
130110	130	110	10.0	29.59	250180	250	180	35.0	185.57
130105	130	105	12.5	36.22	250170	250	170	40.0	207.14
130100	130	100	15.0	42.54	250160	250	160	45.0	227.49
13095	130	95	17.5	48.55	250155	250	155	47.5	237.20
13090	130	90	20.0	54.25	250150	250	150	50.0	246.60
13085	130	85	22.5	59.65	250145	250	145	52.5	255.69
13080	130	80	25.0	64.73	250140	250	140	55.0	264.48
13075	130	75	27.5	69.51	250135	250	135	57.5	272.96
140120	140	120	10.0	32.06	250130	250	130	60.0	281.12
140115	140	115	12.5	39.30	250125	250	125	62.5	288.98
To be continued in right side					250120	250	120	65.0	296.54

Pipes are supplied with lengths according to standard requirements.

Any lengths different from the standard ones are subject to additional negotiations.

Protection

Pipes are supplied:

– black and bare

– external varnished with black or clear lacquer

– oiled

Upon request pipes, ends are protected with plastic caps.

Marking

Pipes are supplied with marking according to standards and customer requests.

Marking is painted and/or hard stenciled on pipe ends. The same data, as well as additional information according to the customer’s request, are indicated on the bundle tags.

Certification

Pipes are supplied with 3.1. inspection certificate, in conformity with EN 10204:2005

Hollow Bar Advantages

Hollow bar and mechanical tubing provide an economic and efficient means for Component Manufacturing Industries; providing a cost effective solution to the use of solid bar.

Hollow bar minimizes material wastage and reduces the total machining time requirements by avoiding the initial drilling operation.

Typical manufacturers that use EN 10294-1 E355 E420 E470 E490 hollow bar to make components that are used in:

General engineering chemical & petrochemical plants, automotive production, paper production plants, textile production plants, food production equipment, anti-friction and slide bearing production.
